GET FULL TRANSIT VEHICLE COVERAGE

Record high-definition video for incident investigations

See everything inside and outside a full-sized transit bus, while extending the lifetime of your current camera equipment.

The NH16K, an NVR and Switch combination, supports both analog and IP cameras so you can introduce camera views as your needs require and budgets allow.

Perfect for fleets needing high camera counts and high-definition analog (up to 1080p), or the latest IP camera technologies with resolutions up to 3MP or 8MP (4K)

See every detail inside and outside the bus

Get coverage of every corner of your full-sized transit bus

True Hybrid Camera System

Perfect for fleets that want to extend the life of their AHD cameras and get the most detail from newer high-resolution IP cameras where needed.

Superior Flexibility

This recorder is truly your one solution for all installation types without compromise.

Crystal Clear, Premium Quality Images

Resolutions up to 3Mpx provide superior image quality across various light conditions.

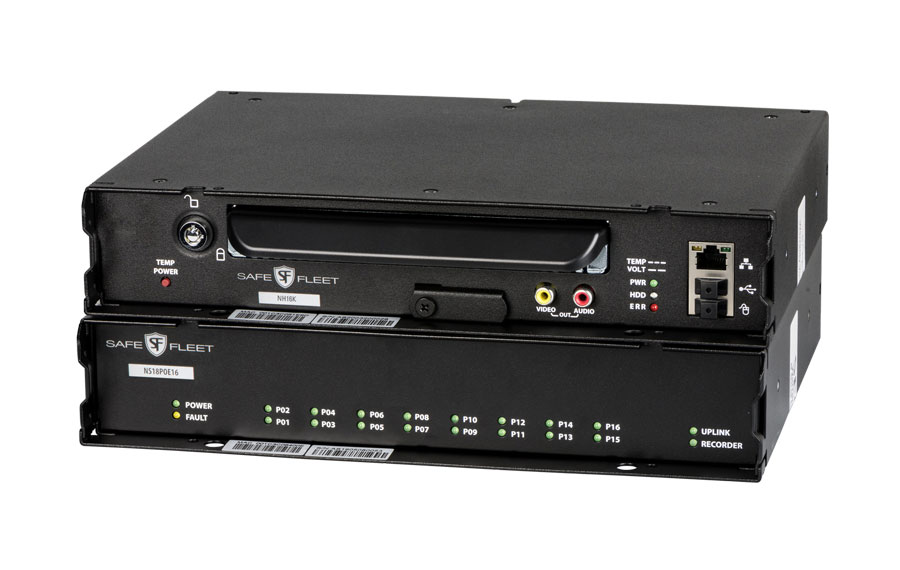

16-Channel Flexible NVR Hybrid Surveillance System for Transit Fleets

  • 16 Channel Video and Audio Recording

    • 8 Analog HD Channels
    • 16 IP Channels
    • 16 Channels Max

  • HD or better resolution on all channels

    • Up to 1080p on all analog channels
    • Up to 3MP on all IP channels
    • Up to 8Mp (4K) on all IP channels

  • Up to 30 FPS on each active channel

  • Up to 4TB Single or 8TB Dual Media
  • Up to 1TB Backup Storage behind locking door

  • GPS-ready

  • Included Network Switching

    • 4-Port Built-In, Unpowered
    • 16-Port External, 48V PoE

Recommended for Fixed Transit busesArticulated Transit buses

CAMERA & ACCESSORY OPTIONS (ANALOG)

Low-Profile Interior Dome – HD2Q

Capture sharper, more detailed images day or night with this high-resolution camera. Purpose-built to address a broad range of camera surveillance needs.

HIGH-DEFINITION INTERIOR DOME – HD3Q

Capture sharper, more detailed images day or night with this high-resolution camera. Features a smaller, low-profile and vandal-resistant housing.

High Definition Outdoor Wedge – HD3W

This high-definition wedge camera supports 1080p resolution recording at the highest frame rates, for clear views outside the bus. Infrared illumination improves the view in low-light conditions.

ULTRA-WIDE, HIGH-DEFINITION Camera – HD3U

Capture a wider field of view and sharper, more detailed images with this high-definition camera. See the full length of the bus for cross-view applications.

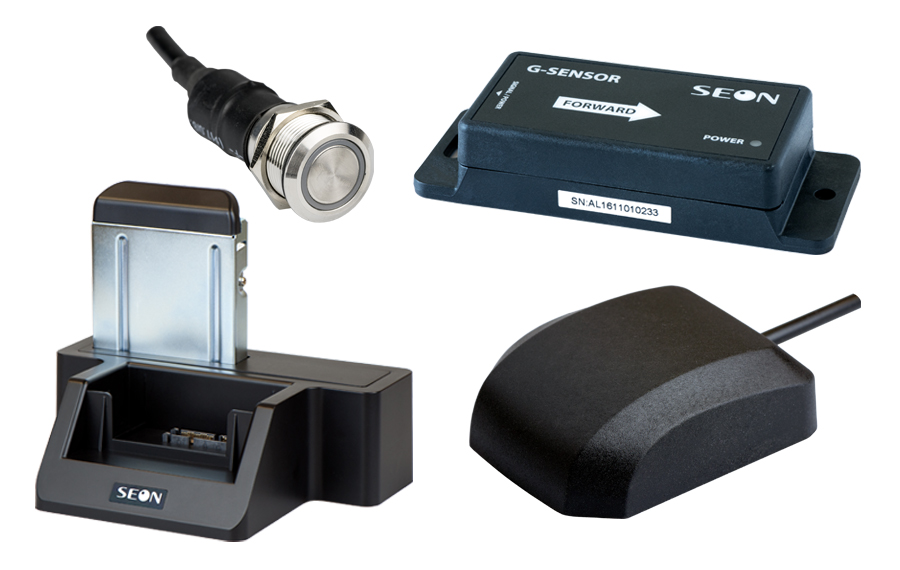

NH16K Accessories

  • G-Force sensor
  • Event/Diagnostics Button
  • Hard Drive Docking Station
  • GPS

CAMERA OPTIONS (IP)

EXTERIOR WEDGE – C3W9PD

This high-definition, wedge camera is equipped with day/night capability and is responsive to quick changes in light levels. Progressive scan allows the camera to capture moving objects while minimizing distortion.

INTERIOR MINI-DOME – C3Q9PD

The C3Q9PD Mini-Dome comes with flexible lens options, a built-in microphone, and PoE power to simplify installation. Capture images in low light scenarios and ensure high image quality even in the most challenging environments.

Resources

NH16 Transit Brochure >

NH16K Spec Sheet >
