INCREDIBLE CLARITY WITH INCREDIBLE VERSATILITY

Get up to 5MP with a camera that meets current and future needs

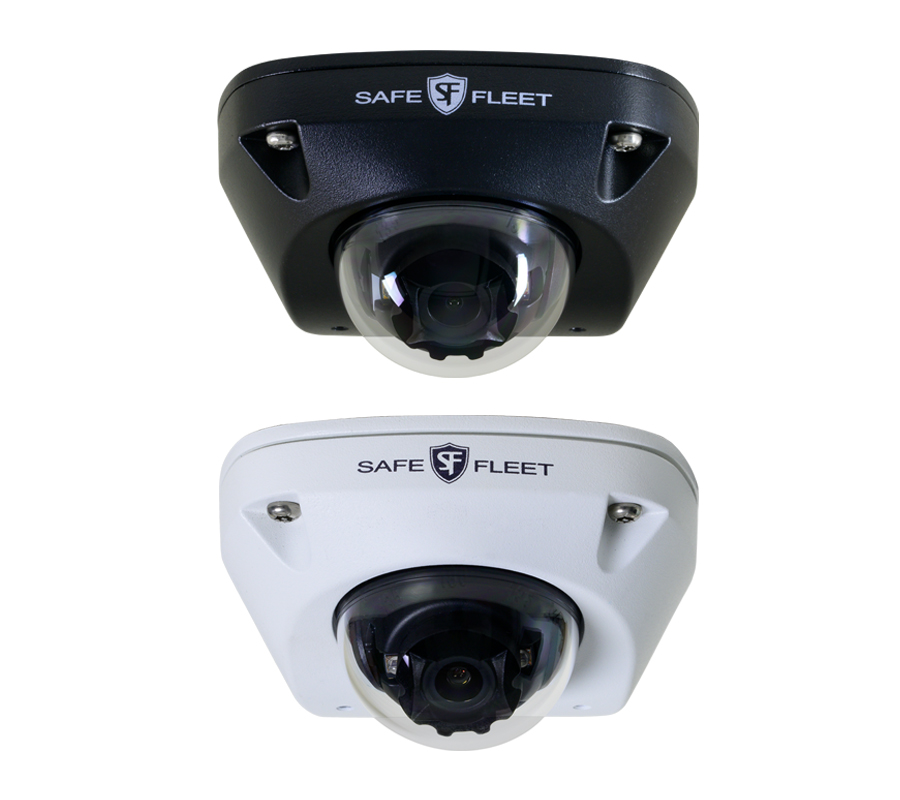

The C5Q1PD Series IP/Analog Mini Dome Camera can be configured for up to 5 MP of resolution meeting current and future needs. Flexible lens options ensure complete scene coverage throughout the vehicle. True Day/Night switching with infrared illuminators ensure reliable image capture regardless of the lighting environment. Black and white housing options are offered to adapt to the aesthetics of the vehicle’s interior.

This compact camera meets most interior needs, including the forward-facing/windshield application where up to 5MP of resolution can help to capture the finer details of unexpected events

COMPACT, FEATURE-RICH, LOW PROFILE MINI DOME CAMERA

The SDA (Standard Definition Analog) video output allows for increased passenger awareness when connected to a Public Display Monitor. IR LEDs help in low lux scenarios making this camera a great choice for all your internal surveillance needs.

Sharper Images Even in Low-light

True day/night functionality and built-in infrared illuminators for capturing images in challenging lighting scenarios.

Standard Definition Analog

Simultaneous analog and IP video outputs.

Streamlined Efficiencies

Advanced video compression technologies with tri-streaming capability and independent settings.

True day/night mini-dome camera with built-in microphone for mobile video surveillance

  • Up to 5 MP resolution

  • Low-profile, rugged design

  • Built-in microphone

  • Simplify the installation with PoE

Mechanical/General:

Dimensions: 61mm x 102mm x 102mm
(2.4 x 4x 4 in)
Weight: 1.99 lbs (902g)

Electrical:

Maximum Resolution: 5MP (2592×1944)
Supported Resolution: IP: 2560×1920, 2048×1536, 1920×1080, 1280×960, 1280×720, 640×480, 640×360, 320×240
Analog: 500 TVL

Environmental:

Environmental Rating: IP68, IP69K & IK10
Operating Temperature: -40°C to +65°C (-40°F to 149°F)
